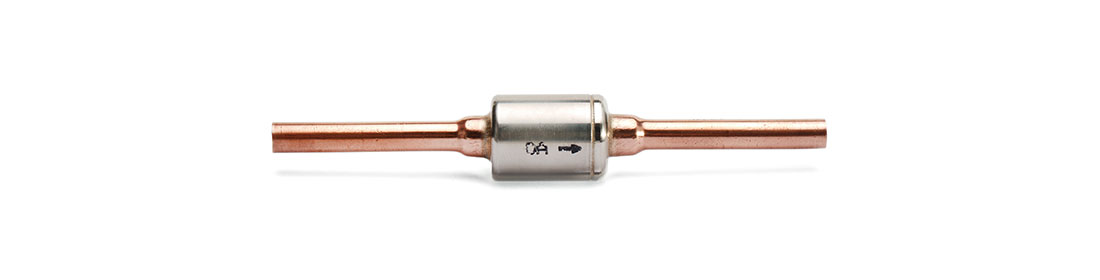

CO₂ check valves control the forward and reverse flow of refrigerant and make refrigerant flow in a specified direction and ensures normal operation under high working pressure in the CO₂ transcritical system.
● Stainless steel housing ensures reliable operation under maximum high pressure of 45MPa
● Soft sealing structure, low internal leakage
● Built-in sliding piston design enables valve-opening under low differential pressure
● Elastic adjustment parts allow installation in any position
● Standardization design, compact size
● Applicable Refrigerants: R744(CO₂)
● Maximum Working Pressure: 15MPa
● Medium Temperature: -30°C~+120°C
● Ambient Temperature: -30°C~+55°C
● Relative Humidity: below 95%
Click here to view all technical specifications and product data
