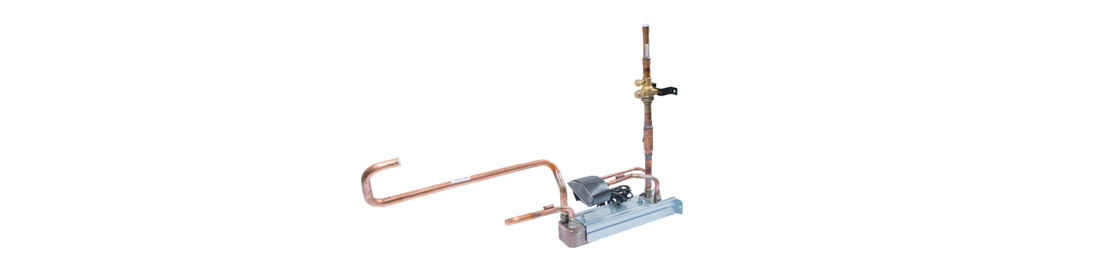

Economizer assembly
FEATURES

● The product is welded with high silver electrode to ensure the welding strength and quality of copper tube and stainless-steel heat exchanger

● The internal leakage of stainless-steel heat exchanger is checked by pressure difference after welding

● The product can totally avoid water flowing

TECHNICAL PARAMETERS

● Maximum Working Pressure: 4.5Mpa

● Medium Temperature: -40℃~130℃

● Applicable Refrigerants: R410A, R32, R134a, R404A, R507, R290, R407C, R22

● Purpose: Economizer assembly is integrated by plate heat exchanger, electronic expansion valve and pipeline to simplify the client welding work. It exchanges heat, adjusts flow rate and throttles refrigeration system
