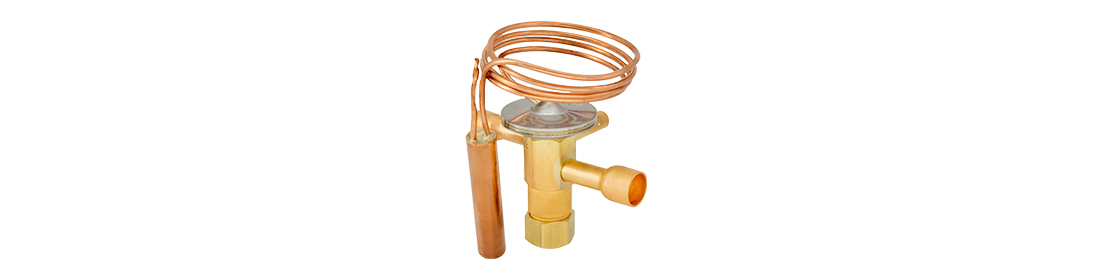

TA Series Thermostatic Expansion Valve

TA Series thermostatic expansion valves are used to adjust refrigerant supply volume in the evaporator by sensing the superheat degree of evaporator outlet through thermal bulb and externa (internal) balance tube.

FEATURES

● Nominal capacity(R134a):0.11~3TR/0.4~10.5kW

● 2 optional designs: adjustable superheat degree (straight-way style) and non-adjustable (right-angle style) structure

● Compact strcture of valve body

● Power head uses continuous laserwelding, which has high welding strength and long diaphragm life

● Available BP capability, 15% or30%

● Available MoP function

● Optional imported filter

● Connection: weld

● Tandard capillary tube length: 0.75m

OPERATION CONDITIONS

● Applicable refrigerants: R134a,R404A,R407C,R22, R290, R448A and R449A, etc.

● Maximum working pressure: 3.4 Mpa

● Medium temperature: -40℃~+70℃

● Maximum thermal bulb temperature: 100℃

● Maximum walve body temperature: 110℃

● Static state superheat degree adjustment change: 0K-8K

● Static state superheat degree setting: 4K

● Ambient temperature: -30℃~+55℃

● Relative humidity:below 95%
