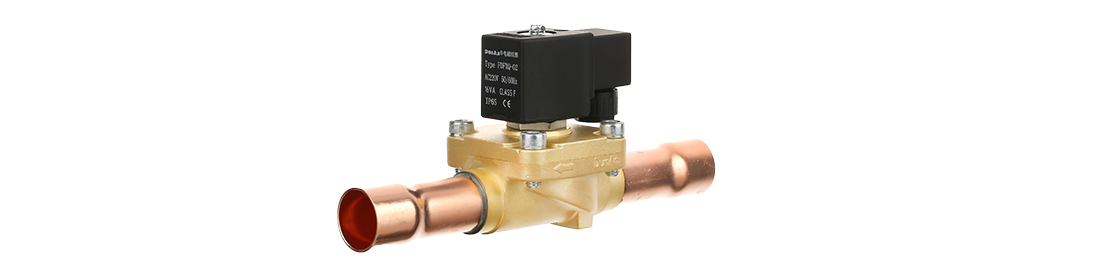

FDF Series Straight-way Solenoid Valves

FDF series straight-through solenoid valves are widely used in liquid lines, suction and exhaust tubes of commercial refrigeration systems and central air conditioners.

FEATURES

● O-ring leads to good compatibility and long usage life

● High purity PTFE sealing material ensures good sealing performance

● Strongvalve opening performance, high MOPD

● Various options ofAc and DC solenoid coils

OPERATION CONDITIONS

● Applicable Refrigerants: R134a, R404A, R507, R410A, R32, R290, R407C and R22, etc. (For R290, please confirm before placing orders)

● Maximum Working Pressure: FDF2~FDF10: 4.5 MPa FDF15~FDF40: 4.2 MPa

● Medium Temperature: -30℃~+105℃

● Ambient Temperature: -30℃~ +55℃

● Relative Humidity: below 95%

● Maximum Temperature for Defrosting: 130℃, Maximum Duration for Defrosting: 2h
