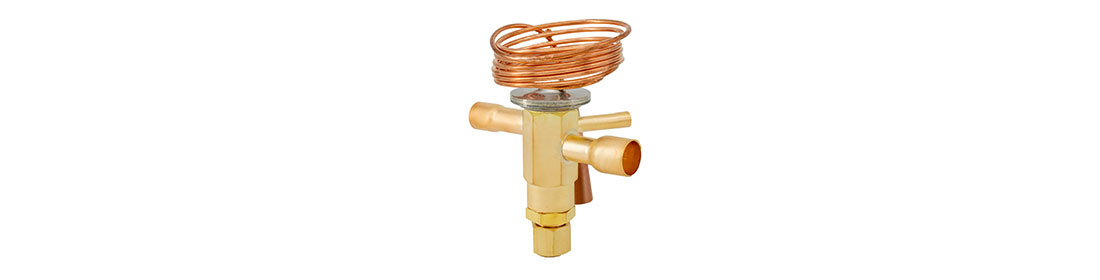

TCC Series Thermostatic Expansion Valve

TCC Series thermostatic expansion valves are used to adjust refrigerant supply volume in the evaporator by controlling the superheat degree of gas state refrigerant at evaporator outlet.

FEATURES

● Nominal capacity(R410A2): ~7TR/7~24.5kW

● 2 optional designs: adjustable and non-adjustable structurePower head uses continuous laser welding, which has high welding strength and long diaphragm life

● Available BP capability

● Available Mop functionality

● Built-in check valve

● Standard capillary tube length: 1.5m

OPERATION CONDITIONS

● Applicable refrigerants: R410A and R22, etc.

● Maximum working pressure: 4.6MPa

● Medium temperature:-40℃~+70℃

● Maximum thermal bulb temperature: 100℃

● Maximum valve bodytemperature: 110℃

● Static state superheat degree adjustment change: 0K~8K

● Static state superheat degree

● setting: 4K

● Ambient Temperature: -30℃~+55℃

● Relative Humidity: below 95%
