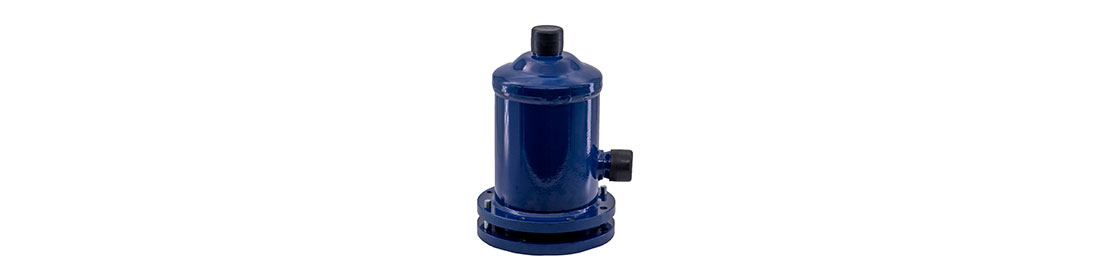

DT Series Re-Core Filter Driers

DT series re-core filter driers are used in liquid and air suction tubes of refrigeration systems. They are connected and sealed by flange, which make the equipment commissioning and maintance easier.

FEATURES

● By detaching the flange, the internal filterelements can be quickly replaced to eliminate impurities

● The 100 mesh stainless steel filter screens are used to effectively filter the solid impurities

● The space to replace the filterelements can be greatly reduced because of the filter rod is grafted

● Applicable for any refrigerant

● The cylinder body and connection port are designed with a large weld surface, which increases weld strength.

OPERATION CONDITIONS

● Applicable Refrigerants: R410A, R32, R134a, R404A, R507, R407C and R22 (For R290, please confirm before placing orders.)

● Maximum Working Pressure: 3.4MPa

● Medium Temperature: -40°C~80°C

● Ambient Temperature: -40°C~55°C

● Relative Humidity: below 95%
