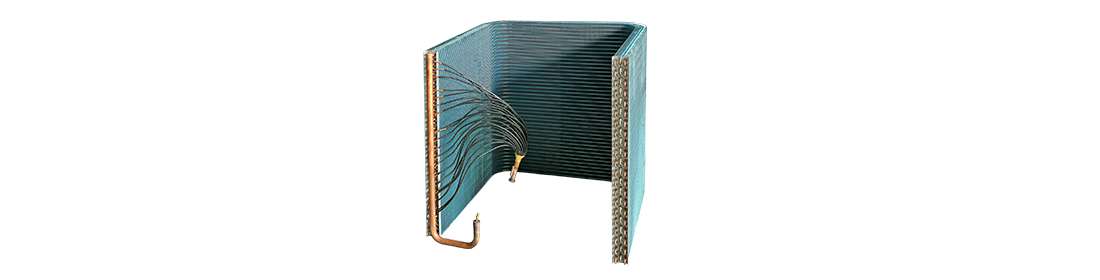

Finned Heat Exchanger

The finned heat exchanger, frequent-used heat exchanger of HVAC devices, is mainly composed of heat exchange tubes, enhanced heat exchange fins, tube assembly and auxiliary sheet metal parts. lt exchanges heat driven by heat transfer temperature difference of fluid between internal and external side of heat exchange tubes. it is widely used in many fields such as civil, commercial, industrial equipment, medical, refrigeration, transportation and specialindustries.

FEATURES

● Fin material: Light aluminum foil, hydrophilic aluminum foil, anti-corrosion aluminum foil and copper foil, etc.

● Product coating: Nano-coating, spray paint, plastic spray and electrophoresis and other surface treatment processes

● Assembly type: Copper tube, carbon steel tube and stainless steel tube are custom-designed

● Structure: Flat, L-shaped, U-shaped, G-shaped bending, etc.

● Fins types: Flat, blind, bridge and corrugated plates, etc. to meet efficient heat transfer needs in various industries

● Copper tube specifications: Ф5, Ф7.94, Ф9.52, Ф12.7 and Ф15.88mm, etc.

OPERATION CONDITIONS

● Applicable Refrigerants: R32, R134a, R410A,R22,R290, R407C, R404A, R454B, R448A, R513A, water, and CO₂, etc.

● Ambient Temperature: -40°C to 72°C

● Medium Temperature: -40°C to 150°C

● Maximum Working Pressure: 4.5MPa (high pressure refrigerant), 3.5MPa (low pressure refrigerant),9MPa(CO₂ evaporator side)
