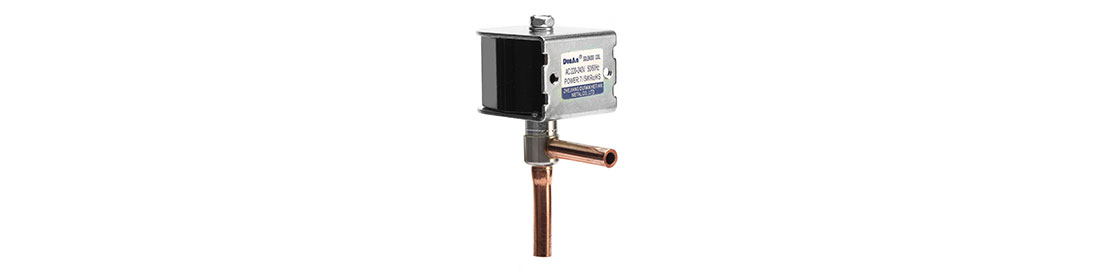

CO₂ solenoid valves are widely used in heat pump water heaters, liquid lines, suction lines and hot gas lines of refrigeration systems with R744 (CO₂). The solenoid valves are controlled by the switching power of solenoid coils to control flow direction of refrigerant in order to realize the automatic adjustment.
● Empty stroke design and improved valve opening capacity ensure normal operation under pressure difference of 10MPa
● Improved materials ensures longer service life and excellent corrosion resistance
● Optimized products for stable performance and high temperature resistance
● Compact design and small size
● High reliability ensures reliable operation under the maximum working pressure of 15.0MPa
● Applicable Refrigerants: R744(CO₂)
● Maximum Working Pressure: 15MPa
● Medium Temperature: -30°C~+120°C
● Ambient Temperature:- 35°C~+55°C
● Relative Humidity: below 95%
